This overview highlights the importance of Type L copper pipe thickness in piping installations nationwide. Experts such as builders, engineers, and procurement managers depend on exact copper pipe specifications. This information is crucial for pipe sizing, pressure calculations, and guaranteeing long-lasting setups. This article uses core data from ASTM B88 and Taylor Walraven to help in picking the correct plumbing materials and fittings.

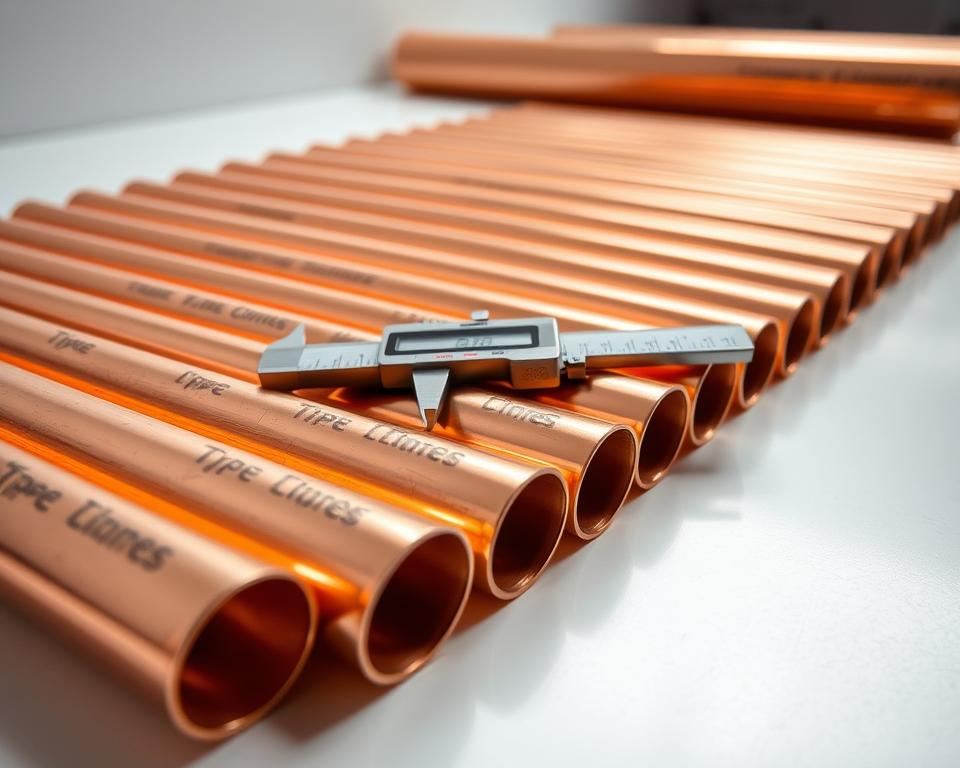

Click Here To View 5/8 OD Copper Pipe
Type L copper tubing strikes a balance between strength and cost, making it ideal for diverse water distribution and mechanical setups. Comprehending the nuances of metal wall thickness, nominal vs actual sizes, and their impact on internal diameter is essential. This knowledge enables installers to select the most appropriate copper tubes for home and business projects alike. The discussion also mentions relevant standards, such as EN 1057 and ASTM B88, along with associated ASTM specs such as B280 and B302 specs.
Essential Takeaways
- Type L copper wall thickness is a frequent pick for plumbing because of its mix of durability and affordability.
- Key sources like Taylor Walraven and ASTM B88 supply the size and weight info needed for accurate pipe sizing.
- Metal wall thickness directly affects internal diameter, pressure capacity, and flow performance.
- Procurement should factor market conditions, material temper, and vendor choices such as Installation Parts Supply.
- Knowledge of standards (ASTM B88, EN 1057) and related specs (B280, B302) guarantees code-compliant installations.
Overview Of Copper Piping Types And Where Type L Fits
Copper piping is grouped into different classes, every one having its specific wall gauge, cost, and application. Contractors look to ASTM codes and EN 1057 when selecting materials for jobs.
K L M DWV comparison highlights where Type L fits in. Type K, with its thick walls, is ideal for underground use and high-stress areas. Type L copper, with a standard wall, is the standard choice for indoor water lines. Type M copper is thinner, appropriate for cost-conscious projects with less mechanical stress. DWV copper is for non-pressurized systems and should not carry drinking water.
This part outlines the common uses and reasoning for selecting Type L pipe. For most jobs, Type L’s wall thickness offers a compromise of pressure ratings and thermal durability. It’s suitable for branch lines, hot water lines, and heating and cooling due to its durability and manageable weight. Type L is compatible with diverse fittings and is available in drawn and annealed tempers.
Standards govern the sizes and allowances of copper tubes. ASTM Standard B88 is central for US sizes, defining K, L, and M types. EN 1057 is the EU standard for plumbing and heating. Additional ASTM specs cover related uses in the piping trade.
A concise comparison table is included for quick reference. For exact specs, consult the B88 standard and vendor sheets such as Taylor Walraven data.
| Type | Wall Characteristic | Common Uses | Pressure Use |
|---|---|---|---|
| Grade K | Heavy wall; max protection | Underground service, domestic water service, fire protection, solar, HVAC | Yes |
| Type L | Standard wall; strength/cost balance | Interior water distribution, branch runs, hot water, many commercial systems | Allowed |
| Grade M | Thin wall; cost-efficient | Above-ground residential, light commercial | Yes, lower pressure margin |
| Drain Waste Vent | Nonpressurized drainage profile | Drain, waste, vent; not for potable pressurized water | Not Allowed |
Building codes and job specs must match with astm standards and EN standards. Ensure compatibility with connectors and joinery before finalizing your choice of plumbing material.
Details On Type L Copper Tubing Thickness
Type L copper wall thickness is critical to a pipe’s strength, pressure capacity, and flow rate. This segment reviews ASTM B88 nominal values, details common sizes with their wall thickness, and clarifies how OD and ID affect sizing calculations.
ASTM nominal charts show standard outside diameters and thicknesses for Type L pipe. These numbers are critical for designers and installers when selecting pipes and connectors from manufacturers like Taylor Walraven and Mueller.
Type L ASTM B88 Nominal Wall Thickness Chart Overview
The chart following lists standard nominal dimensions, their corresponding Type L thickness, and linear weight. These figures are standard for pressure ratings and quantity estimates.
| Nominal Size | Outside Diameter (OD) | Wall Thickness | Lbs/Ft |
|---|---|---|---|
| 1/4″ | 0.375″ | 0.030″ | 0.126 |
| 3/8″ | 0.500″ | 0.035″ | 0.198 |
| 1/2″ | 0.625″ | 0.040″ | 0.285 |
| 5/8″ | 0.750″ | 0.042″ | 0.362 |
| 3/4″ | 0.875″ | 0.045″ | 0.455 |
| 1″ | 1.125″ | 0.050″ | 0.655 |
| 1-1/4″ | 1.375″ | 0.055″ | 0.884 |
| 1-1/2″ | 1.625″ | 0.060″ | 1.14 |
| 2″ | 2.125″ | 0.070″ | 1.75 |
| 2-1/2″ | 2.625″ | 0.080″ | 2.48 |
| 3″ | 3.125″ | 0.090″ | 3.33 |
| 3-1/2″ | 3.625″ | 0.100″ | 4.29 |
| 4″ | 4.125″ | 0.110″ | 5.38 |
| 5″ | 5.125″ | 0.125″ | 7.61 |
| 6″ | 6.125″ | 0.140″ | 10.20 |
| 8″ | 8.125″ | 0.200″ | 19.28 |
| 10″ | 10.125″ | 0.250″ | 31.10 |
| 12″ | 12.125″ | 0.280″ | 40.40 |
Common Nominal Sizes And Corresponding Wall Thickness
Quick reference values are necessary on construction sites. For example, a 1/2″ nominal has a Type L thickness of 0.040″. A 1-inch pipe has a 0.050-inch wall. Bigger pipes feature 3″ at 0.090″ and 8-inch at 0.200. These numbers assist in estimating material cost when evaluating copper pipe 1/2 inch price or larger diameters.
Outside Diameter, Inside Diameter And Wall Thickness Impact On Flow
Nominal size is a designation, not the actual outside diameter. ASTM B88 nominal charts list OD values. In most cases, the outside diameter is about 1/8″ larger than the nominal label.
ID equals OD minus two times the metal wall thickness. Thicker walls reduces internal diameter and available flow area. This difference affects friction loss, pump sizing, and fittings compatibility.
Engineers perform pipe sizing calculations using OD and wall specs from ASTM B88 nominal tables or manufacturer tables. Accurate ID values ensure correct selection of test plugs, pressure tests, and system components for a given system.
Key Dimensions For Type L Copper Tubing
This section highlights important figures for Type L copper tubing to help with dimensioning, picking fittings, and quantity surveying. The table below shows selected nominal sizes with OD, type l copper wall thickness, and linear weight. Use the numbers to confirm compatibility with connections and to plan for handling needs for big pipe installations.
Review the rows by nominal size, then verify the OD and wall to calculate the ID. Note the increased mass for bigger pipes, which affect logistics and install plans for products like an 8 copper pipe.
| Size | OD | Wall Thick. | ID | Weight per Foot |
|---|---|---|---|---|
| 1/4″ | 0.375″ | 0.030″ | 0.315″ | 0.126 lb/ft |
| 3/8″ | 0.500″ | 0.035″ | 0.430″ | 0.198 lb/ft |
| 1/2″ | 0.625″ | 0.040″ | 0.545″ | 0.285 lb/ft |
| 3/4″ | 0.875″ | 0.045″ | 0.785″ | 0.455 lb/ft |
| 1″ | 1.125″ | 0.050″ | 1.025″ | 0.655 lb/ft |
| 2″ | 2.125″ | 0.070″ | 1.985″ | 1.75 lb/ft |
| 3″ | 3.125″ | 0.090″ | 2.945″ | 3.33 lb/ft |
| 6″ | 6.125″ | 0.140″ | 5.845″ | 10.20 lb/ft |
| 8″ | 8.125″ | 0.200″ | 7.725″ | 19.28 lb/ft |
| 10″ | 10.125″ | 0.250″ | 9.625″ | 31.10 lb/ft |
| 12″ | 12.125″ | 0.280″ | 11.565″ | 40.40 lb/ft |
Big copper pipes such as 6″, 8″, 10″, and 12″ show much higher weight per foot. Plan for heavier lifts, bigger hangers, and different jointing techniques when designing these lines. Contractors who offer copper pipe field services must account for hoisting and moving at the jobsite.
How to read tube charts: start with the nominal dimension, check the OD value, then look at the type l copper wall thickness to find the ID by deducting two walls from the OD. Refer to the weight column for estimates and load calculations. For choosing plugs and hydro testing, verify dimensions against manufacturer plug charts and pressure ratings.
Performance Considerations: Pressure, Temperature, And Flow
Comprehending copper tubing performance involves balancing durability, temperature limits, and flow dynamics. In the piping trade, engineers use pressure tables and flow charts to select the right tube type. They must consider physical stresses and flow goals for each run when selecting Type L.
Pressure Rating Variances Between Types K, L And M
ASTM B88 tables outline working pressure trends for various diameters and gauges. Type K has the max pressure rating, then Type L, and finally Type M. It is crucial for engineers to check the specific rating for the selected size and temper prior to design sign-off.
Effect Of Wall Thickness On Maximum Allowable Pressure And Safety Factor
Type l copper wall thickness directly impacts the max safe pressure. Thicker walls increase burst pressure and stress limits, giving a greater safety margin versus physical damage or temperature shifts. The thickness also affects the permissible bending radius and might dictate the choice between drawn or annealed tube for certain joining methods.
Flow Capacity, Water Velocity Limits, And Pressure Loss Vs. Pipe Size
Increasing wall thickness reduces the ID, reducing the flow area. This decrease leads to faster speeds at the same GPM, raising pressure drop. When calculating pipe sizes, calculate the ID from the OD less 2x wall to accurately determine flow characteristics and drag.
| Size | Example Wall (Type K/L/M) | Est. ID | Relative Working Pressure | Loss Factor |
|---|---|---|---|---|
| 1/2″ | 0.049 / 0.040 / 0.028 | 0.546 / 0.628 / 0.740 | K > L > M | Smaller ID = more friction |
| 1″ | 0.065 / 0.050 / 0.035 | 1.030 / 1.135 / 1.250 | K > L > M | Type l copper wall thickness reduces flow area, increases loss |
| 3″ | 0.120 / 0.090 / 0.065 | 2.760 / 2.900 / 3.030 | K > L > M | Drop varies more at high flow |
Consult flow charts for copper tubing or run a hydraulic calculation for every loop. Planners need to check velocity limits to prevent erosion, noise, and premature wear. Temperature derating is needed where solder joints might weaken at elevated temps.
Practical pipe sizing merges pressure limits, type l copper wall thickness, and flow needs. The plumbing industry standard practice is to consult ASTM tables and local code limits, then confirm pump specs and losses to reach a reliable system.
Specification Requirements And ASTM Standards For Copper Tubing
Grasping the controlling standards for copper tubing is essential for meeting specification requirements. Project drawings and POs frequently cite ASTM and EN codes. These standards define sizes, limits, and hardness. Designers rely on them to guarantee the materials and methods align with the planned use.
ASTM B88 serves as the foundation for water pipes in the United States. It details nominal sizes, ODs, wall thickness, tolerances, and mass for Types K, L, and M. The spec also covers annealed and drawn tempers and fitment with various fittings.
Standard B280 controls ACR tubing for cooling systems, with distinct pressure ratings and dimensional controls versus B88. B302 and B306 address drainage and threadless copper for mechanical and drainage systems. Standard EN 1057 offers metric equivalents, serving EU jobs and those requiring metric tolerances.
Temper significantly impacts installation. Annealed tube is more pliable, allowing easy bending on site. It works well for flared and many compression fittings after end preparation. Conversely, drawn tube is stiffer, resists damage, and is better with sweat fittings and for straight runs.
Dimensional tolerance is a key issue. ASTM charts outline OD tolerances ranging from ±0.002″ to ±0.005″ by size. A exact OD is crucial for good joints. Defining tolerances in purchasing can prevent installation problems.
Vendors like Petersen and Taylor Walraven provide I.D., OD, and wall charts. These resources aid in picking test plugs and estimating weights. Using these charts with standards ensures compatibility between material and fittings. This approach reduces errors during copper pipe field services and simplifies ordering.
| Code | Primary Scope | Relevance to Type L |
|---|---|---|
| B88 | Seamless copper water tube; sizes, wall thickness, tolerances, weights | Sets Type L specs and use |
| ASTM B280 | Copper tube for ACR; pressure ratings and dimensions | Used when copper serves HVAC refrigeration systems |
| ASTM B302 / B306 | Threadless tube and DWV dimensions and properties | Relevant for non-pressurized or special drainage uses |
| EN 1057 | Seamless copper tubes for water and gas in metric sizes | Specifies metric OD and wall values for international projects |
Job specs should clearly outline the required ASTM standards, acceptable tempers, and tolerances. This info avoids errors during install and ensures system performance under pressure and during testing.
Unique uses might require additional controls. Med-gas and industrial lines require strict standards. Local codes may limit copper use for gas lines in certain areas because of corrosion risks. Check with the AHJ before making a final selection.
Pricing Examples And Wholesale Sourcing For Copper Tubing
Pricing for Type L pipe changes depending on the copper market, fabrication needs, and supply-chain factors. Buyers should monitor spot copper and mill premiums when planning budgets. For short runs, retailers price per foot. For bulk jobs, wholesalers offer reels or straight lengths with volume discounts.
Before buying, get prices for copper pipe 1/2 inch price and 3 inch copper pipe price. Small 1/2″ L pipe often appears as coil or stick and is priced per foot or per coil. 3″ Type L carries a higher price per foot due to mass and manufacturing effort.
Price factors to watch
Copper price changes, factory delays, and temper choice (soft vs hard) are primary cost drivers. Drawn, hard temper might be pricier than annealed tube. Coil versus straight lengths affect handling and shipping charges. Request B88 certs and temper details on every bid.
Costs for big pipes
Large copper tube sizes increase material, shipping, and installation expense rapidly. An 8-inch pipe is much heavier than small sizes. That extra weight increases freight costs and requires heavier supports on site. Fabrication for large runs, big fittings, and annealing steps add to the total cost.
| Size | Pricing Method | Cost Factors |
|---|---|---|
| 1/2″ Type L | Per foot or per coil | Handling, production, copper spot price |
| 3″ Type L | By linear foot | Material weight, fabrication, special fittings |
| 6-10 in Pipe | Per linear foot with freight add-on | Weight, shipping, supports, annealing |
Wholesale sourcing and distributor note
For volume purchases, use major wholesalers. Installation Parts Supply stocks Type L and other copper tubing and can provide ETAs, bulk discounts, and compliance documents. Buyers should verify OD and wall specs and confirm delivery format—coil or straight—to fit the job needs.
When requesting bids, ask for line-item pricing that breaks out material, fab, and shipping. This detail aids comparison for the same quality of copper tubing and avoids surprises later on.
Installation Techniques, Joining Methods, And Field Work
Type L copper demands precise handling during setup. The right end preparation, flux, and solder alloy are essential for lasting joints. Drawn temper is best for soldering, whereas soft tube is better for bending and flare fittings.
Sweat solder, compression, and flares each have unique uses. Sweating forms permanent joints for water lines, meeting codes. Compression are great for quick assemblies in tight spaces and for fixing leaks. Flare joints are perfect for soft copper and gas/AC lines, providing sealed joints.
Field services teams must follow a detailed checklist for pressure testing and handling. Plugs need to fit the tube’s OD/ID and respect wall thickness. Always consult manufacturer charts for safe test pressures. Log results and check connections for solder fillet quality and ferrule seating.
Hanger spacing is key for long-term performance. Use support spacing guidelines based on size to stop sag. Bigger pipes and heavy runs require closer hangers. Anchors and expansion joints stop stress at joints.
Thermal expansion must be planned for on long runs and HVAC circuits. Install loops, guides, or sliding supports for temperature changes. Copper’s expansion rate is significant in hot water/solar jobs.
Common mistakes include misreading dimensions and temper. Confusing nominal size with actual OD can lead to mismatched parts. Specifying Type M in high-pressure applications can reduce safety margins. Check tolerances against ASTM B88 and manufacturer data sheets before assembly.
Plumbing codes set use limits and material specs. Check local municipal codes for water, med-gas, and fire jobs. Some jurisdictions restrict copper use for gas; adhere to ASTM on cracking risks.
Moving big pipes needs equipment and care during transport and placement. Heavy sections like 8″ or 10″ need rigging, straps, and support to prevent damage that ruin fittings.
Use standard logs and education for copper pipe field services teams. This cuts mistakes, boosts pass rates, and keeps jobs on time in building construction.
Wrap Up
Type L Copper Wall Thickness strikes a balance for various piping jobs. It has a medium wall, better than Type M in pressure capacity. However, it costs less and lighter than Type K. This renders it a flexible option for potable water, hydronic, and cooling systems.
Always check ASTM B88 and manufacturer charts, such as Taylor Walraven, for specs. These charts detail OD, nominal wall thickness, ID, and weight per foot. Ensuring these specifications are met is crucial for correct hydraulic calculations and fitting compatibility. This includes sweat, comp, and flare methods.
When budgeting, keep an eye on material costs. Look at wholesalers such as Installation Parts Supply for stock and certs. Remember to consider working pressures, temperature impacts, support spacing, and local codes. This assists in achieve installations that are both durable and compliant with regulations.
